KF Series KFB200
KFB200 Functions & Features
- Red laser for a wide variety of objects
- Integrated laser, no calibration required(Preset)
- Single 12-24V power supply operation
- Dustproof housing equivalent to IP5X
- Camera Link-Base or Ethernet output
Performance Specifications
※You can flick left and right to view.
| Physical Specifications | Unit | KFB200-CR | KFB200-ER |
|---|---|---|---|
| Optical system | - | Diffused reflection by light section method | Diffused reflection by light section method |
| Stand off and working distance | mm | 200±60 | |
| Measurement range/Near | mm | 86 | |
| Measurement range/Reference | mm | 123 | |
| Mewasurement range/Far | mm | 160 | |
| Output data resolution/Height | μm | 10 | |
| Output data resolution/Width | μm | 100 | |
| Line rate | kHz(μs) | Up to 3.2（312） | |
| Laser light source | - | Red semiconductor laser | |
| - | Class2M [JIS C 6802] | ||
| Data output format | - | Camera Link-Base | Ethernet |
| Data format | bit | 16 | |
| Output connector | - | SDR、12226-8200-00PL (3M) | M12 CAT5e（10/100/1000 Base-T） |
| Power input connector | - | 12Pin、LF10WBR-12P (HIROSE) | |
| Size (W×H×D) | mm | 145×75×40 | |
| Input voltage | VDC | Min：11 Max：25 | |
| Signal transfer cable | - | Camera link Cable : Please prepare separately |
M12 Ethernet cables can be ordered with the camera in the following length. 5m Model number：NBC-MSX/5.0-94F/R4AC SCO（1407473） 10m Model number：NBC-MSX/10.0-94F/R4AC SCO（1407473） |
(*1) This information is subject to change without notice.
(*2) Measuring environment of vibration test 【Excitation acceleration : 9.8m/s2, Excitation frequency : 5Hz - 200Hz, Test time : 120 min. each in X, Y, Z direction】

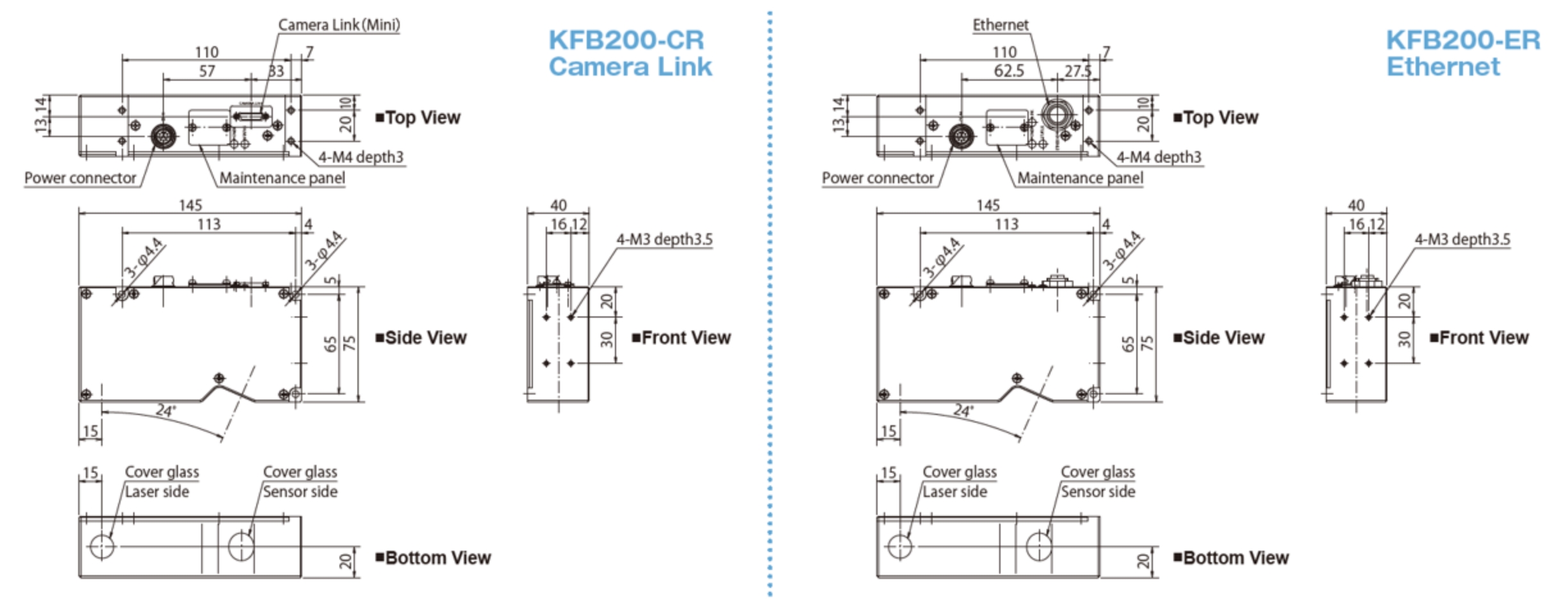

Dimensions
Product Comparison
※You can flick left and right to view.
| KFB200 | KFB300 | KFB080 | |
|---|---|---|---|
| Stand off | 200㎜ | 300㎜ | 80㎜ |
| Measurement range/Reference | 123㎜ | 185㎜ | 45㎜ |
| Output data resolution/Height | 10μｍ | 10μｍ | 1μｍ |
| Output data resolution/Width | 100μｍ | 150μｍ | 50μｍ |
| Line rate | Up to 3.2kHz | Up to 2kHz | Up to 5kHz |
| Data output format | Camera Link/Ethernet | Ethernet | Camera Link-Base |
FAQ
Q
What is the standoff (reference) height?
A
Standoff is the center of height. The direction approaching the camera is "+", the direction away from the camera is "-", and the camera standoff (reference) height is "0".
Q
Can we use Ethernet model by connecting to a laptop PC?
A
Yes. However, an exclusive Ethernet cable and power supply for the camera must be ready.
After connecting the camera to the PC and the power supply with the cable, please install the image display application following the instruction manual.
Q
If I ask for a measurement request, what would be a suitable sample size?
A
Any shape is acceptable as long as the width subject to the measurement is less than or equal to 160 mm.
