Power supply box for CMICRO CAMERA
power box Functions & Features
- PW1550C-4 can connect up to 4 line scan cameras
- PW1550C-K connects one 3D line camera
- PW1550C-K can connect one 3D line camera
- The 3D line camera is equipped with an external sync input terminal on the front of the box
- 15 V DC, 3.5 A, 50 W max
Performance Specifications
※You can flick left and right to view.
| Model | PW1550C-4 | PW1550C-K |
|---|---|---|
| Application | For Line Scan Camera | For ３D Line camera |
| Number of camera | 4 Max.(Up to 50W) | 1 |
| Frequency | 50-60 | 50-60 |
| Input power | AC100V～240V | AC100V～200V |
| Output power | CD15V, 3.5A, Max.50W | CD15V, 3.5A, Max.50W |
| Camera output connector | HR10-7R-6P(73) | LF10WBR-12P |
| External sync Input | - | Isolated input 1ch (EXTIN1) Differential input 1ch (RS422) |
| Size(W×H×D) | 120×100×160mm | 120×100×160mm |
| Weight (Excluding cable) | 700g | 600g |
| Accessories | AC power cable | AC power cable |
| DC power cable for camera | Order separately according to length and number of cameras. See next sheet. | |
(*1) This information is subject to change without notice.
(*2) Measuring environment of vibration test 【Excitation acceleration : 9.8m/s2, Excitation frequency : 5Hz - 200Hz, Test time : 120 min. each in X, Y, Z direction】

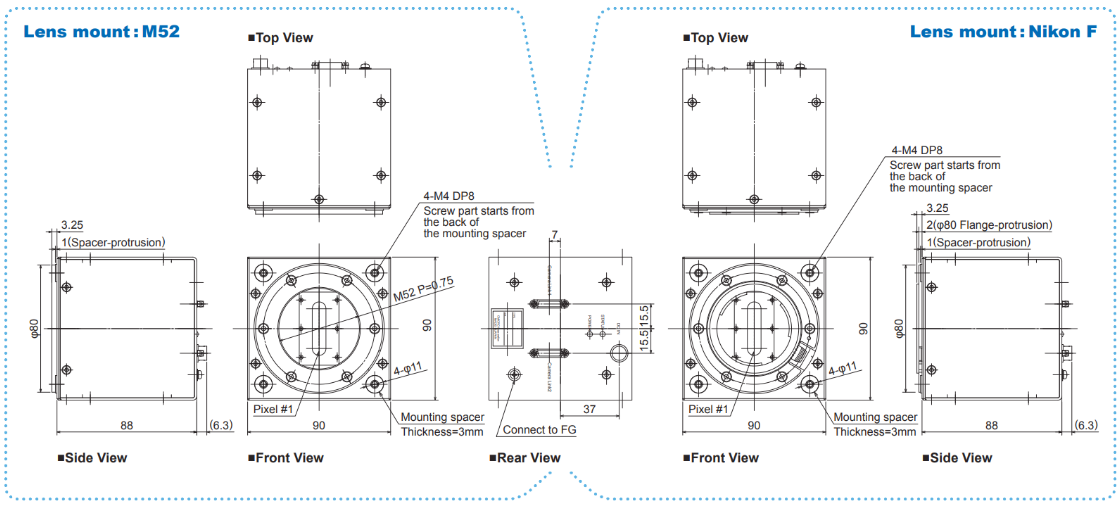

Dimensions
Power cable
Power cable for line scan cameras
※You can flick left and right to view.
| Model | Length | Connector camera side | Connector power supply box side |
|---|---|---|---|
| PWC010N-6P-6P | 10m | HR10-7P-6S(73) HIROSE 6Pin |
HR10-7P-6S(73) HIROSE 6Pin |
| PWC050N-6P-6P | 5m | ||
| PWC030N-6P-6P | 3m |
Power cable for 3D line cameras
※You can flick left and right to view.
| Model | Length | Connector camera side | Connector power supply box side |
|---|---|---|---|
| B043PD62110-10 | 10m | LF10WBR-12P | LF10WBR-12P |
| B043PD62110-5 | 5m | ||
| B043PD62110-3 | 3m |
FAQ
Q
Do I always need to use a CMICRO power supply box for CMICRO cameras?
A
No, you do not. As long as the customer provides a stable power rating, the camera can be used without any problems.
Q
Is a power cable for the camera included with the purchase of a power supply box?
A
No, it is not. It is not included because the distance from the camera installation location to the power supply box varies depending on the usage conditions.
Q
The instruction says that up to four-line scan cameras can be connected, but would it be ok to use only one camera?
A
Yes, it is ok. As long as the power consumption is 50W or less.
Q
Is it possible to connect four(4) RSB400H cameras?
A
No. RSB400H has a power consumption of 13.8W per unit, so up to 3 units can be connected. (Power consumption of 50W or less)
