KF Series KFB300
KFB300 Functions & Features
- Multiple units can be connected to a single PC via a HUB
- Blue laser for a wide variety of objects
- Integrated laser, no calibration required(Preset)
- Single 12-24V power supply operation
- Ethernet output
Performance Specifications
| Physical Specifications | Unit | KFB300-EB | |
|---|---|---|---|
| Optical system | - | Diffused reflection by light section method | |
| Stand off and working distance | mm | 300±120 | |
| Measurement range/Near | mm | 110 | |
| Measurement range/Reference | mm | 185 | |
| Mewasurement range/Far | mm | 260 | |
| Output data resolution/Height | μm | 10 | |
| Output data resolution/Width | μm | 150 | |
| Line rate | kHz(μs) | Up to 2（500） | |
| Laser light source | - | Blue semiconductor laser | |
| - | Class2 [JIS C 6802:2014] | ||
| Data output format | - | Ethernet | |
| Data format | bit | 16 | |
| Output connector | - | M12 CAT5e（10/100/1000 Base-T） | |
| Power input connector | - | 12Pin、LF10WBR-12P (HIROSE) | |
| Size (W×H×D) | mm | 145×75×40 | |
| Input voltage | VDC | Min：12 Max：24 | |
| Signal transfer cable | - | M12 Ethernet cables can be ordered with the camera in the following length. 5m Model number：NBC-MSX/5.0-94F/R4AC SCO（1407473） 10m Model number：NBC-MSX/10.0-94F/R4AC SCO（1407473） |
|
(*1) This information is subject to change without notice.
(*2) Measuring environment of vibration test 【Excitation acceleration : 9.8m/s2, Excitation frequency : 5Hz - 200Hz, Test time : 120 min. each in X, Y, Z direction】

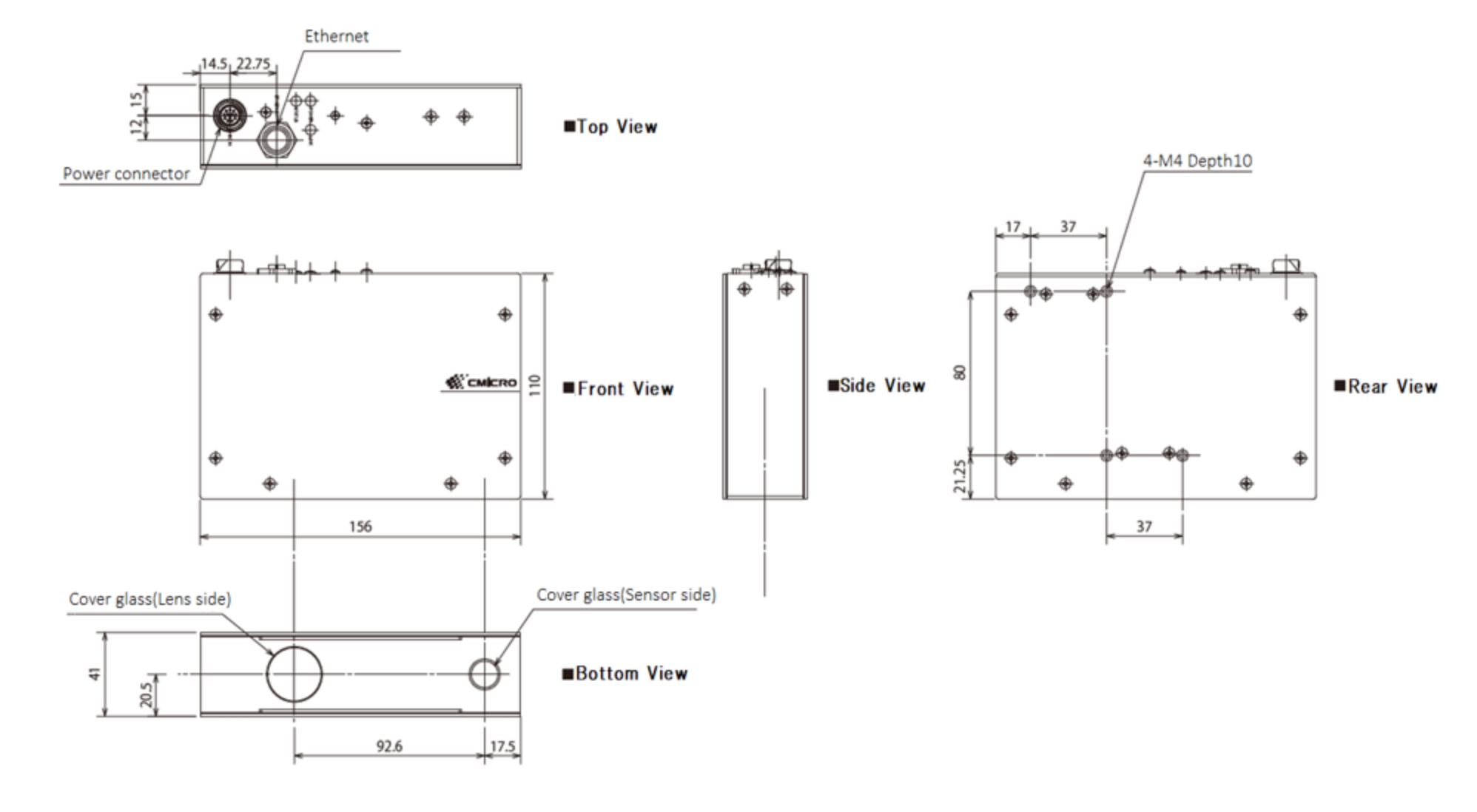

Dimensions
Product Comparison
| KFB300 | KFB200 | KFB080 | |
|---|---|---|---|
| Stand off | 300㎜ | 200㎜ | 80㎜ |
| Measurement range/Reference | 185㎜ | 123㎜ | 45㎜ |
| Output data resolution/Height | 10μｍ | 10μｍ | 1μｍ |
| Output data resolution/Width | 150μｍ | 100μｍ | 50μｍ |
| Line rate | Up to 2kHz | Up to 3.2kHz | Up to 5kHz |
| Data output format | Ethernet | Camera Link/Ethernet | Camera Link-Base |
FAQ
I would like to request a sample measurement. Could you advise a sample size suitable for the measurement?
Any shape is acceptable as long as the width subject to the measurement is less than or equal to 260mm.
Can you explain the meaning of "multiple units can be connected"?
You can use three or four units of KFB300 to compose the workpiece outline and capture the outline data.
This is useful when you want to measure the volume of a three-dimensional object.
What would be the output format for the height of 16-bit data?
The height is output as a value between -12000 and +12000 out of 65536 gradations of 16-bit data.
-12000 represents -120 mm and +12,000 represents +120 mm. Invalid data is output as -32768.
The direction approaching the camera is "+", the direction away from the camera is "-", and the camera standoff (reference) height is "0".
