KF Series KFB080
KFB080 Functions & Features
- Green laser for a wide variety of objects
- Integrated laser, no calibration required(Preset)
- Single 12 to 24 V power supply
- Dustproof housing equivalent to IP5X
- Camera Link-Base output
Performance Specifications
※You can flick left and right to view.
| Physical Specifications | Units | KFB080-CG | |
|---|---|---|---|
| Optical system | - | Diffused reflection by light section method | |
| Stand off and working distance | mm | 80±15 | |
| Measurement range/Near | mm | 40 | |
| Measurement range/Reference | mm | 45 | |
| Mewasurement range/Far | mm | 50 | |
| Output data resolution/Height | μm | 1 | |
| Output data resolution/Width | μm | 50 | |
| Line rate | kHz(μs) | Up to 5 (200） | |
| Laser light source | - | Green visible light semiconductor laser | |
| - | Class 3R [JIS C 6802:2014] [IEC 60825-1:2014] | ||
| Data output format | - | Camera Link (Base Configuration) | |
| Data format | bit | 16 (Profile), 8 (Sensor Image) | |
| Output connector | - | SDR、12226-8200-00PL (3M) | |
| Power input connector | - | LF10WBR-12P (Hirose) | |
| Size (W×H×D) | mm | 127×118×40 | |
| Input voltage | VDC | Min.：12 Max.：24 | |
| Signal transfer cable | - | Camera Link cable must be prepared separately. | |
(*1) This information is subject to change without notice.
(*2) Measuring environment of vibration test 【Excitation acceleration : 9.8m/s2, Excitation frequency : 5Hz - 200Hz, Test time : 120 min. each in X, Y, Z direction】

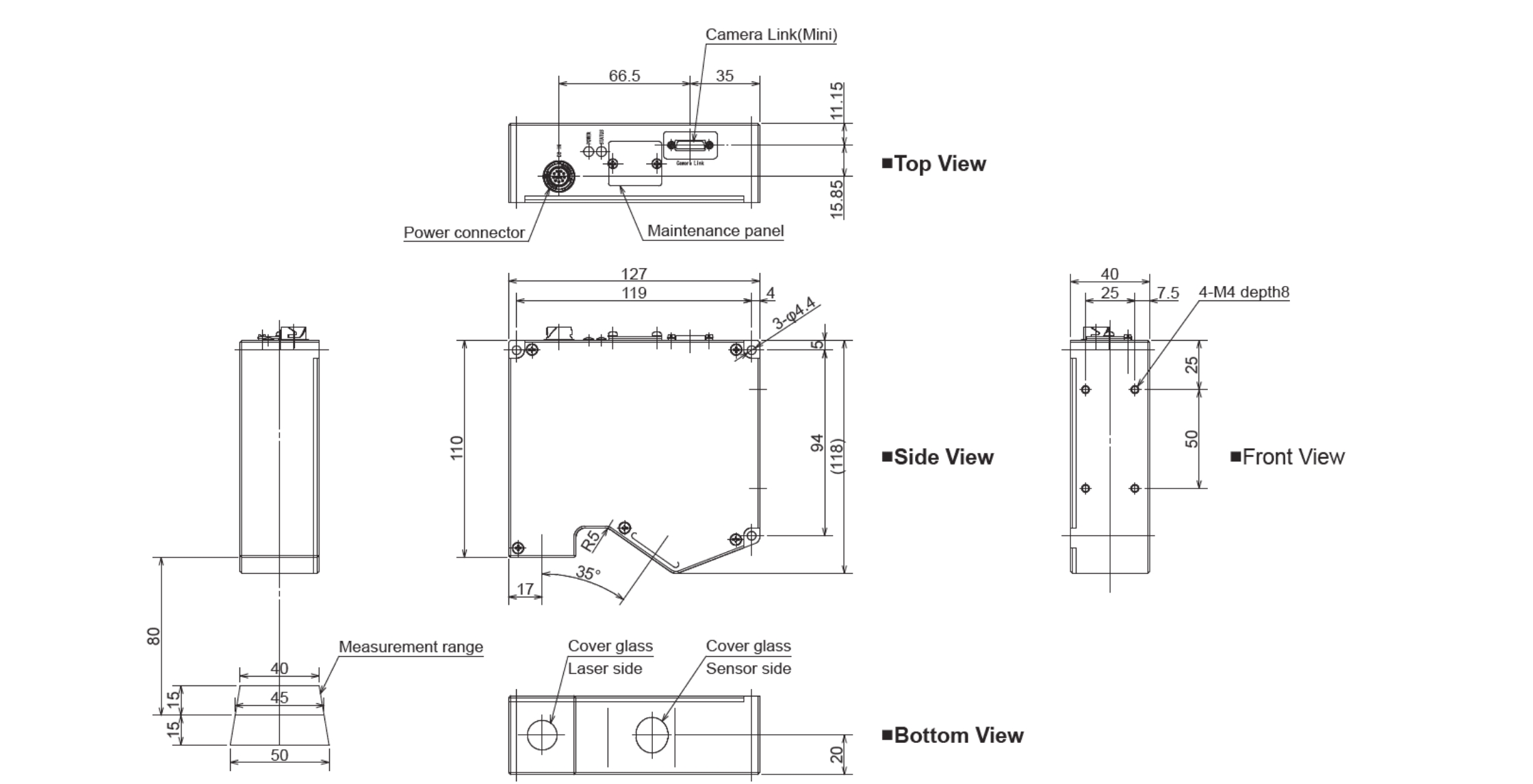

Dimensions
Product Comparison
※You can flick left and right to view.
| KFB080 | KFB200 | KFB300 | |
|---|---|---|---|
| Stand off | 80㎜ | 200㎜ | 300㎜ |
| Measurement range/Reference | 45㎜ | 123㎜ | 185㎜ |
| Output data resolution/Height | 1μｍ | 10μｍ | 10μｍ |
| Output data resolution/Width | 50μｍ | 100μｍ | 150μｍ |
| Line rate | Up to 5kHz | Up to 3.2kHz | Up to 2kHz |
| Data output format | Camera Link-Base | Camera Link/Ethernet | Ethernet |
