TF Series　TFB200H

2048pixels, 3CMOS color line scan camera

This camera is a 3-sensor color line scan camera with a dichroic prism.

Specifications

Camera Type： Prism 3CMOS color line scan camera
Resolution： 2048
Pixel Size： 14×14μm
Line Rate： 19 kHz
Interface： Camera Link-Base/Medium
Lens Mount： M52 or Nikon F

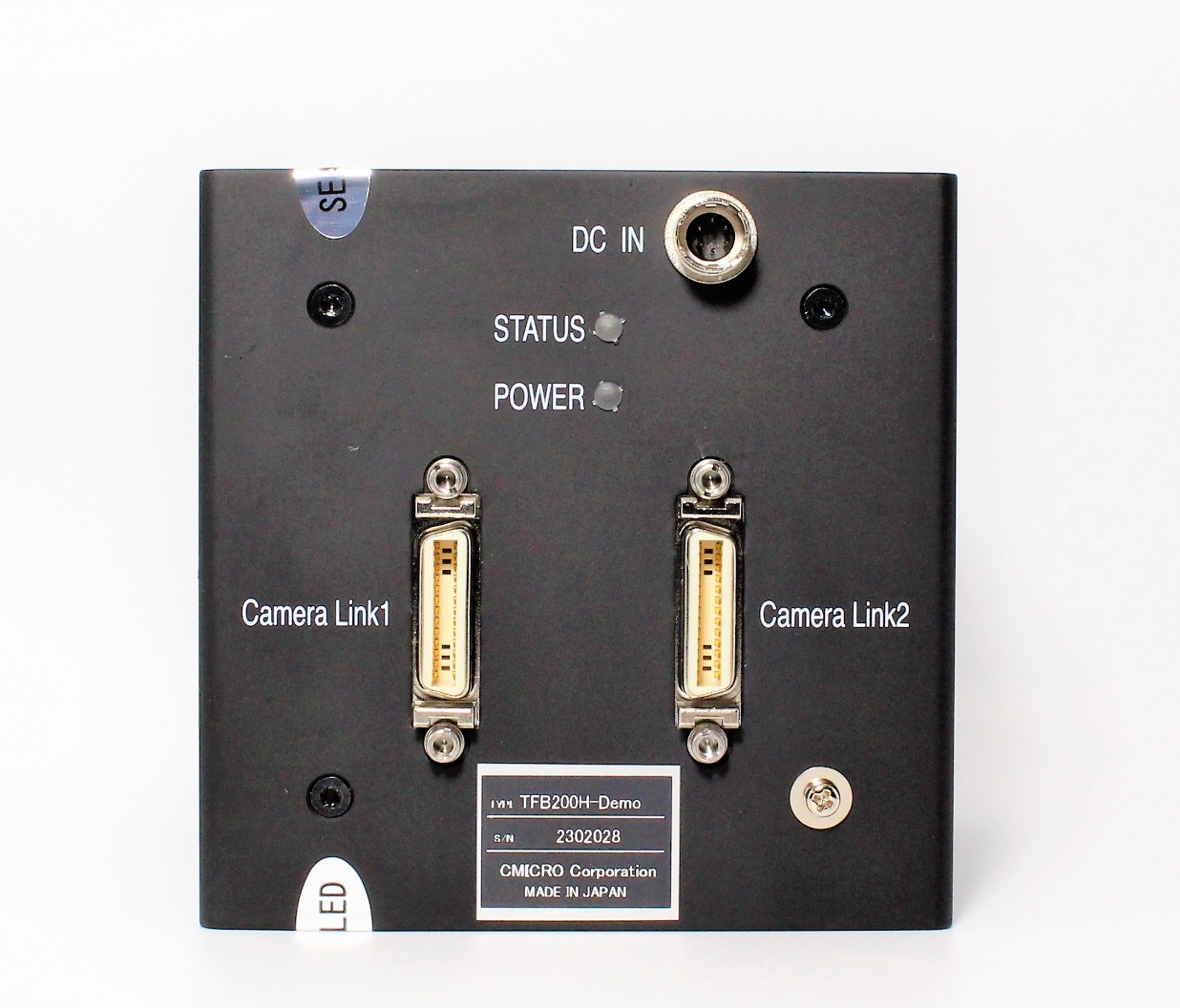

TF series back side

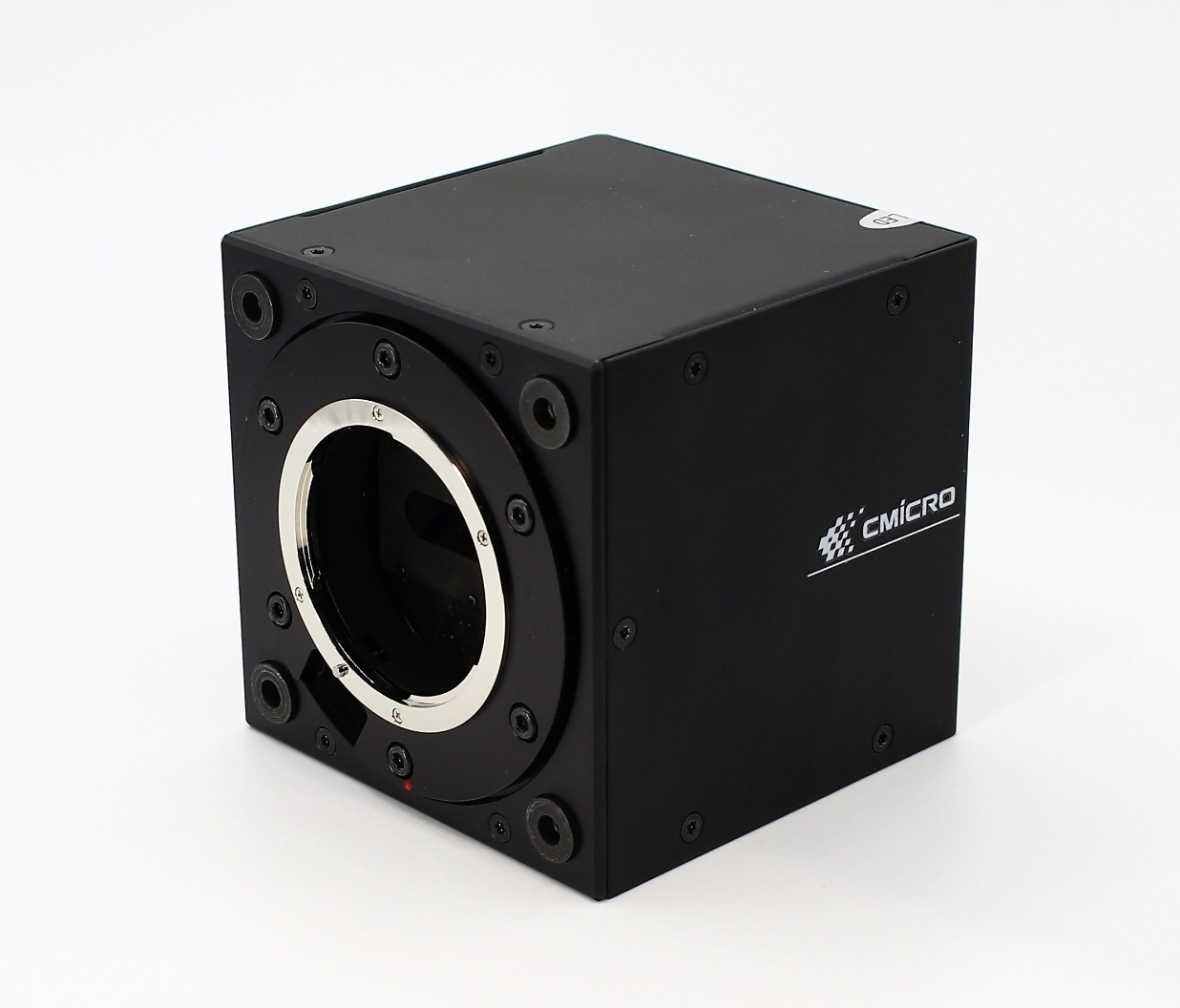

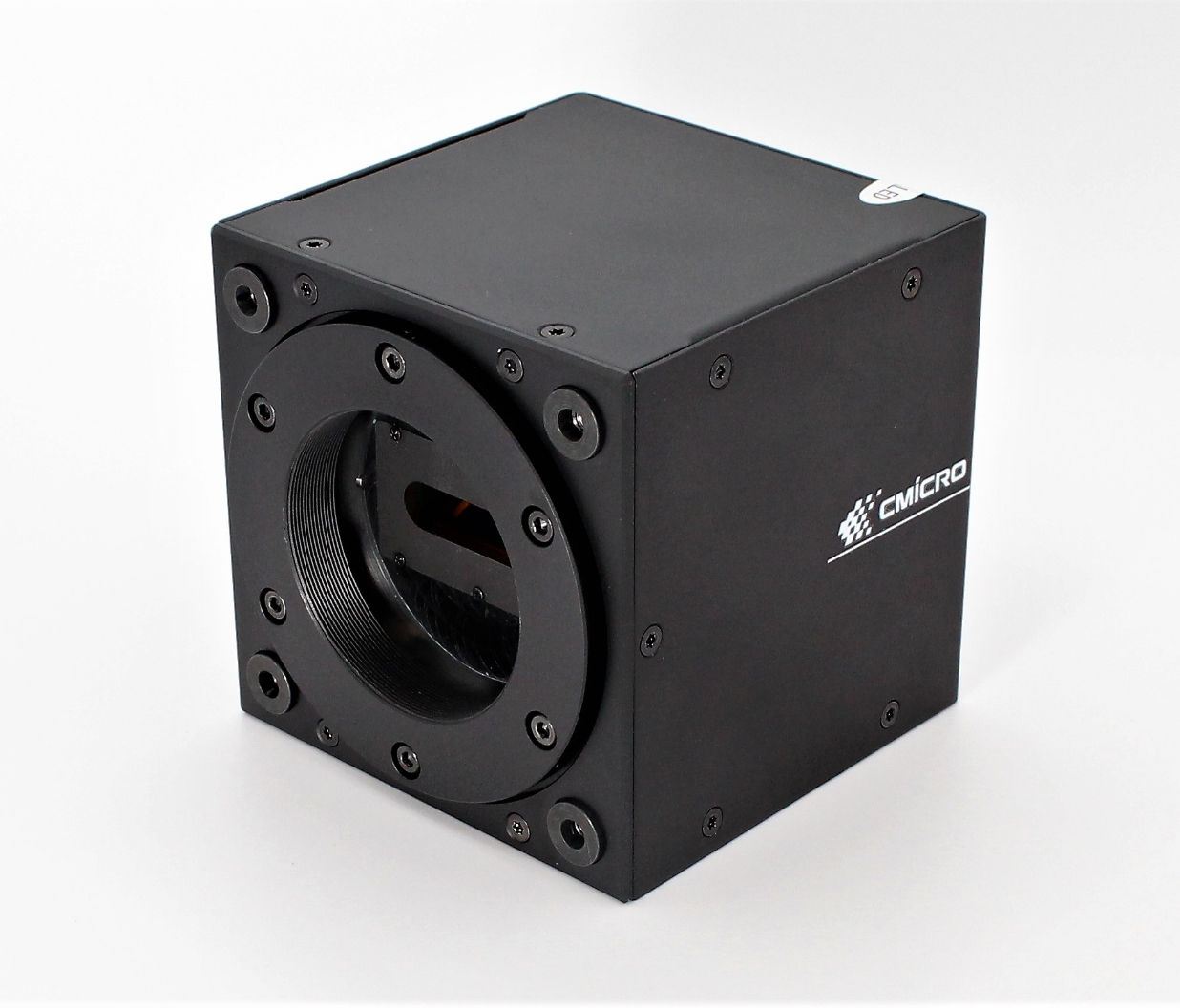

TF series bird's-eye view

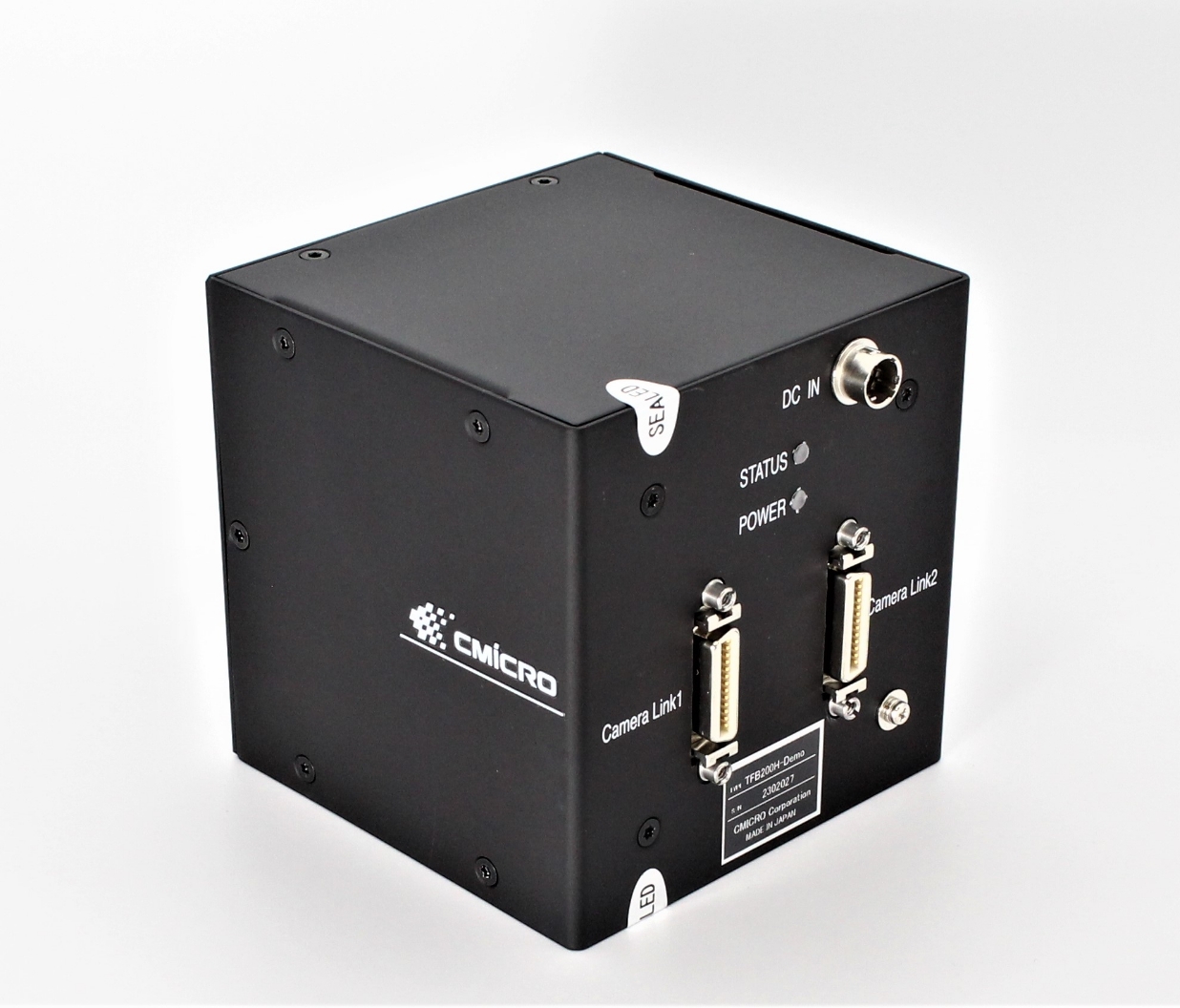

TF series bird's-eye view back
TF series front

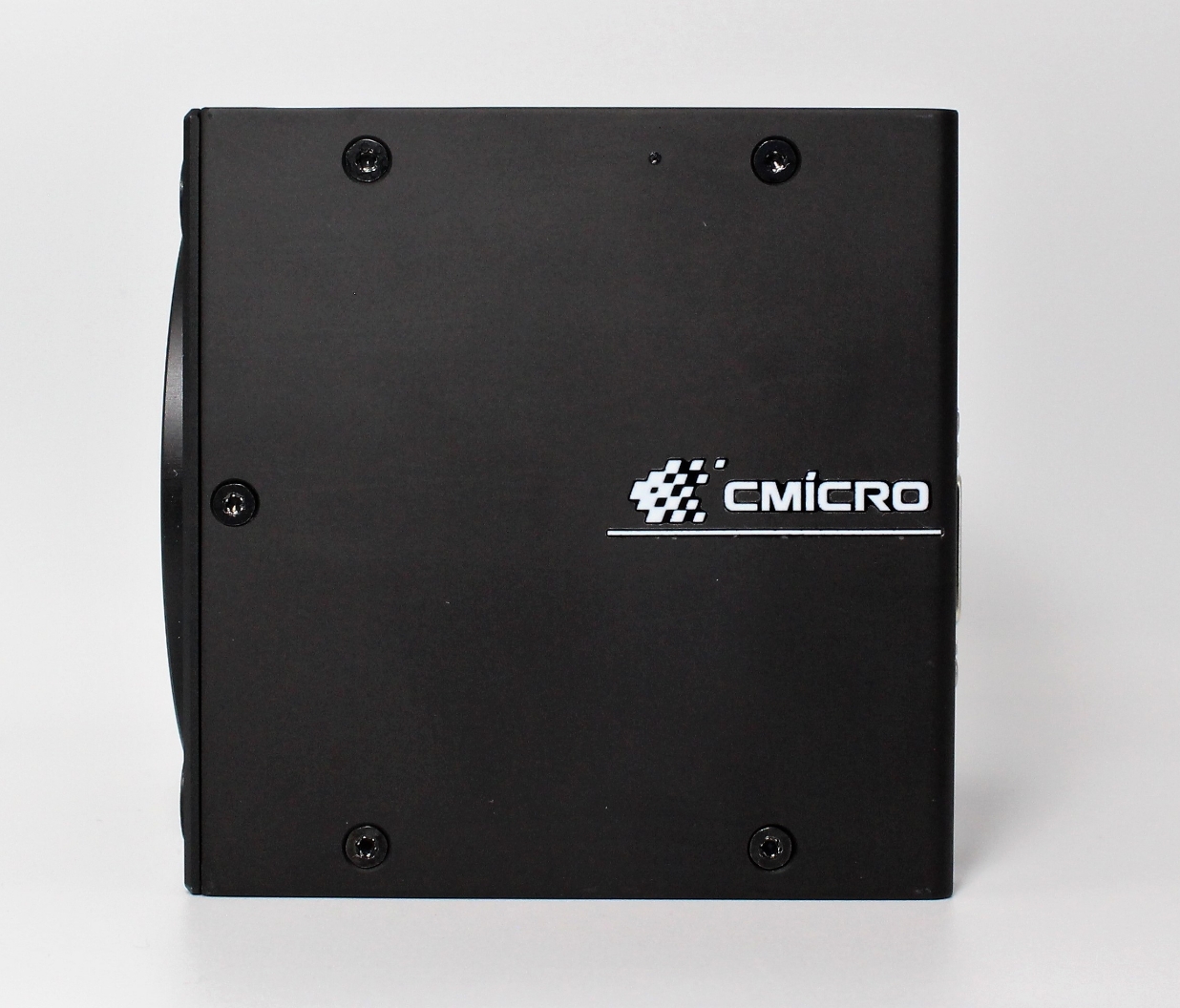

TF series side
TF series back side
TF series bird's-eye view
TF series bird's-eye view
TF series bird's-eye view back
TF series front
TF series side
TF series back side

TF Series's Functions & Features

  • High-sensitivity CMOS sensor with pixel size of 14 x 14μm
  • Data rate of 40MHz
  • Excellent color reproducibility with dichroic prism
  • No delay processing is required because RGB is acquired from the same optical axis
  • Synchronous mode setting (internal/external)
  • Exposure control function
  • Horizontal binning function

Performance Specifications

※You can flick left and right to view.
Physical Specifications Unit TFB200HｰC5 TFB200H-CF
Resolution pixel 2048×3(RGB)
Pixel size μm 14×14
Aperture mm 28.67
Lens Mount - M52 Nikon F
Flange back mm 46.5
Power Input Connector - 6Pin：HR10-7R-6P（HIROSE）
Size(W×H×D) mm 90×90×88
Weight（Excluding Lens） g 1000
Data Output Format - 40MHz （R,G,B） Camera Link-Base/Medium
Data Output Connector - Camera Link（MDR）26Pin×2、10226-2200PE（3M）
Operation Range Unit TFB200HｰC5 TFB200H-CF
Exposure Control - Yes
Data Rate MHz 40 (25/20)
Line Rate kHz Max: 19.0（52.6us)
Gain Range dB Min: 0 　 Max: 24
Data Format bit 8（Base）,10/12（Medium）
Operating Temperature ℃ Min: 0 　　 Max: 45
Power Supply DC V Min: 11 Max: 25 (Typ.12～24V)

(*1) This information is subject to change without notice.
(*2) Measuring environment of vibration test 【Excitation acceleration : 9.8m/s2, Excitation frequency : 5Hz - 200Hz, Test time : 120 min. each in X, Y, Z direction】

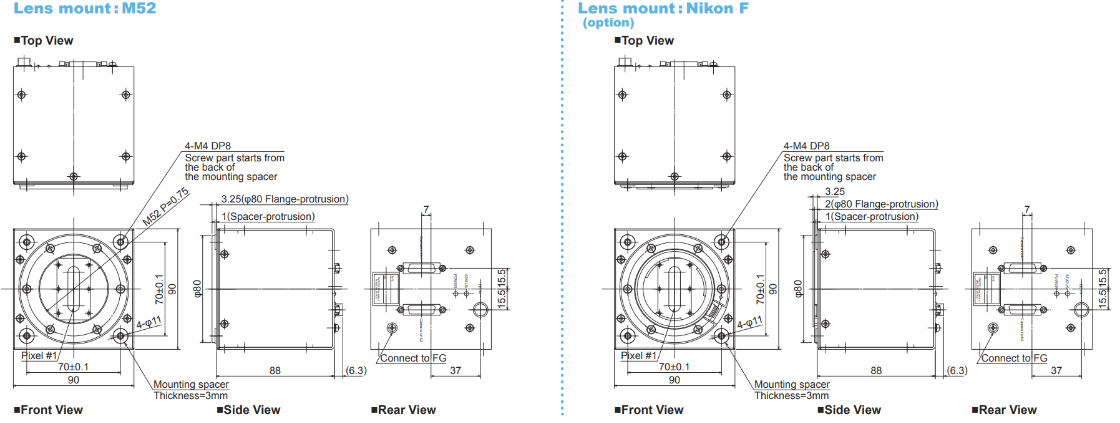

Dimensions

TF series
View large image

Product Comparison

※You can flick left and right to view.
  TFB200H RSB200H
Sensor CMOS CMOS
Resolution 2048 2048
Pixel Size 14×14μm 14×14μm
Line Rate 19kHz 64kHz
Interface Camera Link-B/M Camera Link-B/M
Lends Mount M52/Nikon F M52/Nikon F

FAQ

Q

What are the advantages of a prism color line scan camera?

A

It is especially useful for taking images on curved surfaces and three-dimensional objects.  It is extremely practical when taking images of two workpieces at different speeds within the field of view.

Q

Is delay control necessary for a prism camera like a 3-line camera?

A

No. Since RGB is spectrally split from a single input optical axis, there is no color drift in the direction of flow.

Q

Is it possible to lower the data rate?

A

Yes, 20/25MHz transmission rate can be used by changing the command settings.
