NH Series　NHB050H

SWIR line scan camera with 512 pixel InGaAs sensor

NH series camera is a line scan camera that captures images in the SWIR region, 950 to 1700 nm.
This is a cost-effective camera with high sensitivity in a small size.

Specifications

Camera Type： Single sensor SWIR line scan camera
Resolution： 512 pixels
Pixel Size： 25×25μm
Line Rate： 8.14kHz
Interface： Camera Link-Base
Lens Mount： C
NH series back side
NH series bird's-eye view
NH series bird's-eye view back
NH series front
NH series side
NH series back side
NH series bird's-eye view
NH series bird's-eye view
NH series bird's-eye view back
NH series front
NH series side
NH series back side

NH Series's Functions & Features

  • High-sensitivity InGaAs sensor with 512 pixels and pixel size of 25×25μm
  • Capturing images in SWIR band of 950 to 1700 nm
  • Compact size: 60×60×60 mm
  • C-mount enables a variety of lens selections
  • Dust-proof housing structure
  • Synchronization mode setting (internal/external)
  • Horizontal binning function

Performance Specifications

※You can flick left and right to view.
Physical Specifications Unit NHB050H-CC
Resolution pixel 512
Pixel size μm 25×25
Aperture mm 12.8
Spectrum Sensitivity nm 950～1700
Lens Mount - C
Flange back mm 17.526
Power Input Connector - 6Pin：HR10-7R-6P（HIROSE）
Size(W×H×D) mm 60×60×60
Weight（Excluding Lens） g 260
Data Output Format - Camera Link Base
Data Output Connector - CameraLink（MDR）26Pin、10226-2200PE（3M）
Operation Range Unit
Exposure Control - 40
Data Rate MHz 5
Line Rate kHz Max：8.14(122.8μs)
Gain Range dB Min：0　　Max：16.0
Data Format bit 8/10/12
Operating Temperature ℃ Min：0　　Max：50
Power Supply DC V Min：11　　Max：16 (Typ.12～15V)

(*1) This information is subject to change without notice.
(*2) Measuring environment of vibration test 【Excitation acceleration : 9.8m/s2, Excitation frequency : 5Hz - 200Hz, Test time : 120 min. each in X, Y, Z direction】

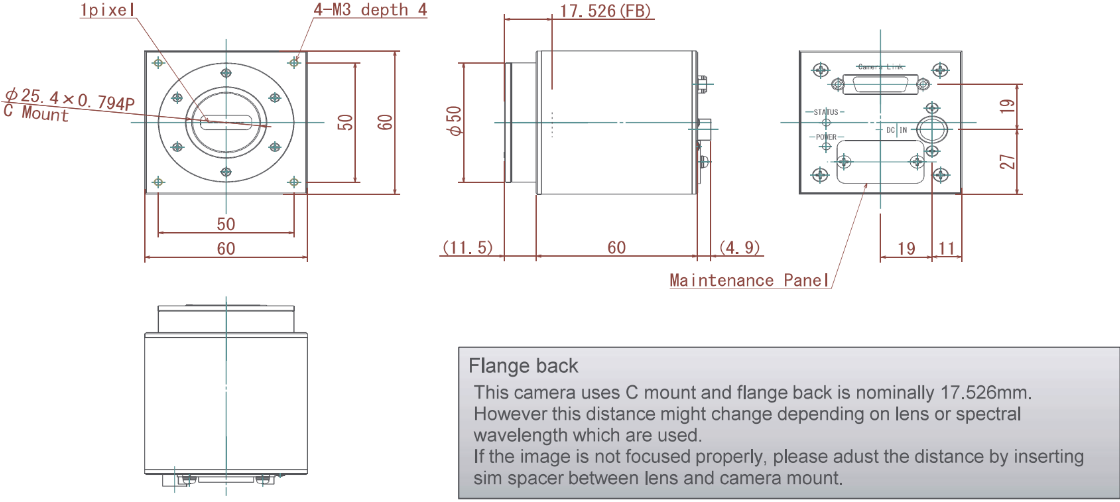

Dimensions

NH series
View large image

Product Comparison

※You can flick left and right to view.
  NHB050H NDB100H
Sensor InGaAs×１ InGaAs×2 with prism
Resolution 512 1024
Pixel Size 25×25μｍ 12.5×12.5μｍ
Line Rate 8.13kHz 40kHz
Interface Camera Link-Base Camera Link/Gig-E
Lends Mount C M52/F

FAQ　

Q

Is it possible to capture specific bandwidth within the range of 950-1700 nm?

A

Yes it is possible.  You can capture required bandwidth by attaching a band-pass filter in front of the lens.

Q

Does the frange back change by wavelength?

A

Yes. If the wavelength bands to be captured is narrowed down, the flange back will change roughly ±0.2mm depending on the wavelength. Please make fine adjustments with focus settings and shim ring.
