ND series　NDB100H

1024 pixels, SWIR Dual-band prism line scan camera

ND series is a SWIR line scan camera that splits SWIR rays from 950 to 1700 nm at 1375 nm with a prism and performs high-speed imaging with two InGaAs image sensors.
The camera captures the exact same images in two wavelength bands, enabling high-precision selection/sorting that was previously impossible.

Specifications

Camera Type： Dual InGaAs sensor with prism
Resolution： 1024 pixels
Pixel Size： 12.5μm
Line Rate： 40kHz
Interface： Camera Link-Base / GigE Vision
Lens Mount： F / M52
NDB100H back side
NDB100H bird's-eye view
NDB100H bird's eye view back view
NDB100H front
NDB100H side
NDB100H back side
NDB100H bird's-eye view
NDB100H bird's-eye view
NDB100H bird's-eye view back
NDB100H front
NDB100H side
NDB100H back side

NDB100H Series's Functions & Features

  • High-sensitivity Dual InGaAs sensor with 1024 pixels, and pixel size of 12.5×12.5μm
  • Two SWIR sensors capture the same incident light
  • Excellent spectral sensitivity due to prism（950 ～1345nm/1400～1700nm）
  • Synchronization mode setting (internal/external)
  • Exposure control setting（internal/external）
  • Selection of the scan direction
  • Pixel correction（FPN、PRNU、Shading）
  • Monitoring of power voltage, internal temperature, and camera status

Performance Specifications

※You can flick left and right to view.
Physical Specifications Unit NDB100H-CF/C5 NDB100H-GF/G5
Resolution pixel 1024 ×2
Spectrum Sensitivity(half value) nm Prism spectrum, Short：950～1345 / Long：1400～1700
Pixel size μm 12.5 × 12.5
Aperture mm 12.8
Lens Mount - -CF : Nikon F / -C5 : M52
Flange back mm 46.5
Power Input Connector - 6Pin：HR10-7R-6P(HIROSE)/12Pin（Option） 20Pin：HR10A-13R-20P（HIROSE）
Size(W×H×D) mm 90×90×88 90×90×111.5
Weight（Excluding Lens and mount） g 1000 1200
Data Output Format - Camera Link Base Configuration GigE Vision
Data Output Connector - Camera Link 26Pin (SDR) RJ45
Operation Range unit Camera Link 26Pin (SDR) NDB100H-GF/G5
Exposure Control - Yes
Sampling Rate - 60 / 40 MHz 1 Gbps
Data Rate 60 / 40 MHz 1 Gbps
Line Rate kHz Max：40（25μs） / 38.4（26μs） Max：40（25μs）
Gain Range dB Min：0 Max：15.5
Data Format Bit 8/10/12
Operating Temperature Deg C Min：0 Max：45
Power Supply DC V Min：11 Max：25 (Typ.12～24V)

(*1) This information is subject to change without notice.
(*2) Measuring environment of vibration test 【Excitation acceleration : 9.8m/s2, Excitation frequency : 5Hz - 200Hz, Test time : 120 min. each in X, Y, Z direction】

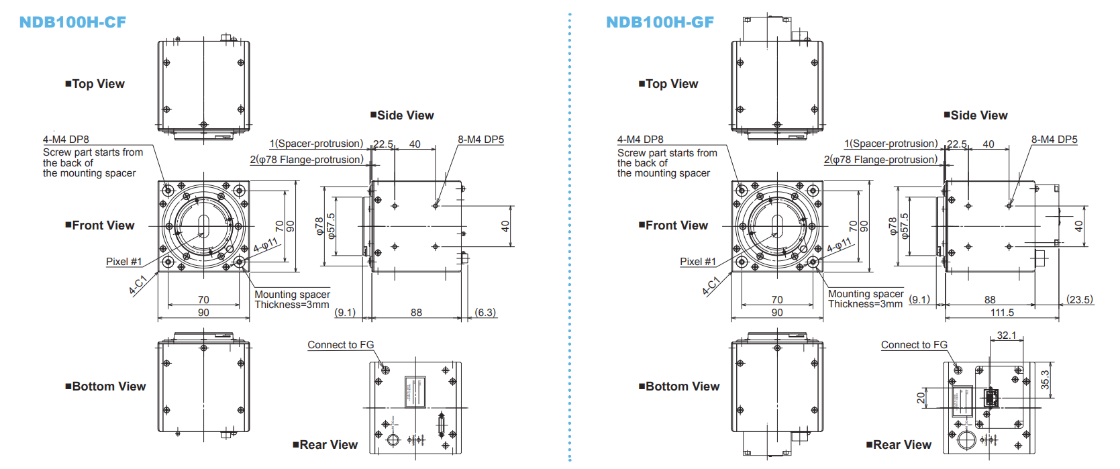

Dimensions

ND series
View large image

Product Comparison

※You can flick left and right to view.
  NDB100H NHB050H
Sensor InGaAs×2 with prism InGaAs×１
Resolution 1024 512
Pixel Size 12.5×12.5μｍ 25×25μｍ
Line Rate 40kHz 8.13kHz
Interface Camera Link/GigE Vision Camera Link-Base
Lends Mount M52/F C

FAQ　

Q

What is the sensitivity band of this camera?

A

It is manageable to separately capture images in two wavelength bands of 950-1345nm and 1400-1700nm from the same incident light.

Q

What would be the benefit of using a dual-band line scan camera that utilizes a prism system?

A

You can capture the exact same images in two wavelength bands, enabling high-precision selection/sorting.
