FX series　FXS800A/400A

8192, 4096 pixels monochrome line scan camera

This camera is a monochrome line scan camera that achieves long-distance transmission using CoaXPress.

Specifications

Camera Type： CMOS monochrome line scan camera
Resolution： 8192/ 4096
Pixel Size： 7×7μm　(Single/※Dual)
Line Rate： 72.4 kHz
Interface： CoaXPress
Lens Mount： M72 / Nikon F

※Dual is a special order.

FX series back side
FX series bird's-eye view
FX series bird's-eye view back
FX series front
FX series side
FX series back side
FX series bird's-eye view
FX series bird's-eye view
FX series bird's-eye view back
FX series front
FX series side
FX series back side

FX Series's Functions & Features

  • 8192 and 4096 pixels use a CMOS sensor with a pixel size of 7×7μm
  • Realizes long-distance transmission by CoaXPress
  • Power over Coax (18.5 to 26V)
  • Synchronization mode setting (internal/external)
  • Exposure control function
  • Horizontal binning function
  • Compact housing construction with dust resistance
  • F-mount for 4096-pixel camera

Performance Specifications

※You can flick left and right to view.
Physical Specifications Unit FXS800A-X7 FXS400A-XF
Resolution pixel 8192 4096
Pixel size μm 7.0×7.0（Single、Dual:Option）
Aperture mm 57.34 28.67
Lens Mount - M72 (P=0.75) Nikon F
Flange back mm 9.54
Size(W×H×D) mm 80×80×54 80×80×91
Weight（Excluding Lens） g 500 620
Data Output Format - CXP-6：2×6.25Gbps
　　　　1×6.25Gbps
CXP-5：2×5.0Gbps
　　　　1×5.0Gbps
CXP-3：2×3.125Gbps
　　　　1×3.125Gbps
Data Output Connector - DIN 1.0/2.3 connector DCJ-LR（Canare）
Operation Range Unit FXS800A-X7 FXS400A-XF
Exposure Control - Yes
Data Rate MHz 640
Line Rate kHz Max: 72.4 (13.8μs)
Gain Range dB Min: 0 　 Max: 21.6
Data Format bit 8/10/12
Operating Temperature ℃ Min: 0 　　Max: 50
Power Supply DC V Min：18.5　Max：26 (Typ.24V)

(*1) This information is subject to change without notice.
(*2) Measuring environment of vibration test 【Excitation acceleration : 9.8m/s2, Excitation frequency : 5Hz - 200Hz, Test time : 120 min. each in X, Y, Z direction】

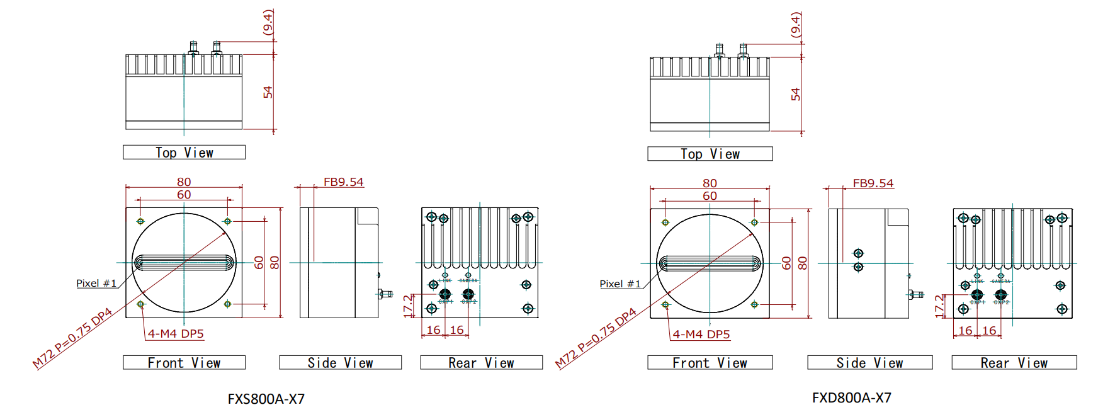

Dimensions

FX series
View large image

Product Comparison

※You can flick left and right to view.
  FXS800A/400A FCH800A/400A SFB400H
Sensor CMOS CMOS CMOS
Resolution 8192/4096 8192/4096 4096
Pixel Size 7×7μm 7×7μm 7×7μm
Line Rate 72.4kHz 72.4kHz 34kHz
Interface CXP Camera Link Camera Link
Lends Mount M72/F M72/F M42/F

FAQ　

Q

What would be a benefit of deciding to go with CoaXPress?

A

Camera CoaXPress can extend the transmission distance longer than Camera Link and the diameter of the cable is thinner than that of Camera Link.  These features make it easier to laying and handling operations around pipes.

Q

As for Power Over CXP model, How do we supply electric power to the camera?

A

You can take power from the board with the CXP cable. The standard is JIIA compliant.
