FC Series　FCS16KA/800A/400A

16384, 8192, and 4096pixels monochrome line scan camera

This camera is a high pixel, high-speed line scan camera with a CMOS sensor.
It has a low heat dissipation and a thin housing.

Specifications

Camera Type： CMOS monochrome line scan camera(Single）
Resolution： 16384 / 8192/ 4096
Pixel Size： 3.5×3.5/7×7/7×7 μm
Line Rate： 40.65 / 72.4 / 72.4 kHz
Interface： Camera Link-Full / 80bit / Medium
Lens Mount： M72 / F / M72
FC series back side
FC series bird's-eye view
FC series bird's-eye view back
FC series front
FC series side
FC series back side
FC series bird's-eye view
FC series bird's-eye view
FC series bird's-eye view back
FC series front
FC series side
FC series back side

FC Series's Functions & Features

  • 16384 pixels use a CMOS sensor with a pixel size of 3.5 x 3.5µm
  • 8192 and 4096 pixels use a CMOS sensor with a pixel size of 7×7μm
  • Synchronization mode setting (internal/external)
  • Exposure control function
  • Horizontal binning function
  • Compact housing construction with dust resistance
  • M72 mount for 16384 and 8192pixel cameras
  • Nokon F-mount for 4096-pixel camera

Performance Specifications

※You can flick left and right to view.
Physical Specifications Unit FCS16KA-C7 FCH800A-C7-03 FCH400A-CF-03
Resolution pixel 16384 8192 4096
Pixel size μm 3.5×3.5 7.0×7.0
Aperture mm 57.34 57.34 28.67
Lens Mount - M72 (P=0.75) M72 (P=0.75) Nikon F
Flange back mm 9.54
Power Input Connector - 6Pin：HR10-7R-6P（HIROSE）
Size(W×H×D) mm 87.0×118.0×29.5 87.0×118.0×66.4
Weight（Excluding Lens） g 450 570
Data Output Format - Camera Link Full Camera Link Medium/ Full/ 80bit
Data Output Connector - Camera Link 26Pin (MDR) x 2 10226-2200PE(3M)
Operation Range Unit FCS16KA-C7 FCH800A-C7-03 FCH400A-CF-03
Exposure Control - Yes
Data Rate MHz 680(85×8taps) 640(80×8taps) 320(80×4taps)
Line Rate kHz Max: 40.6(24.6μs) Max: 72.4 (13.8μs)
Gain Range dB Min: 0 　 Max: 21.6
Data Format bit 8 8/10
Operating Temperature ℃ Min: 0 　　 Max: 50
Power Supply DC V Min:11　　　Max:16 (Typ.12～15V)

(*1) This information is subject to change without notice.
(*2) Measuring environment of vibration test 【Excitation acceleration : 9.8m/s2, Excitation frequency : 5Hz - 200Hz, Test time : 120 min. each in X, Y, Z direction】

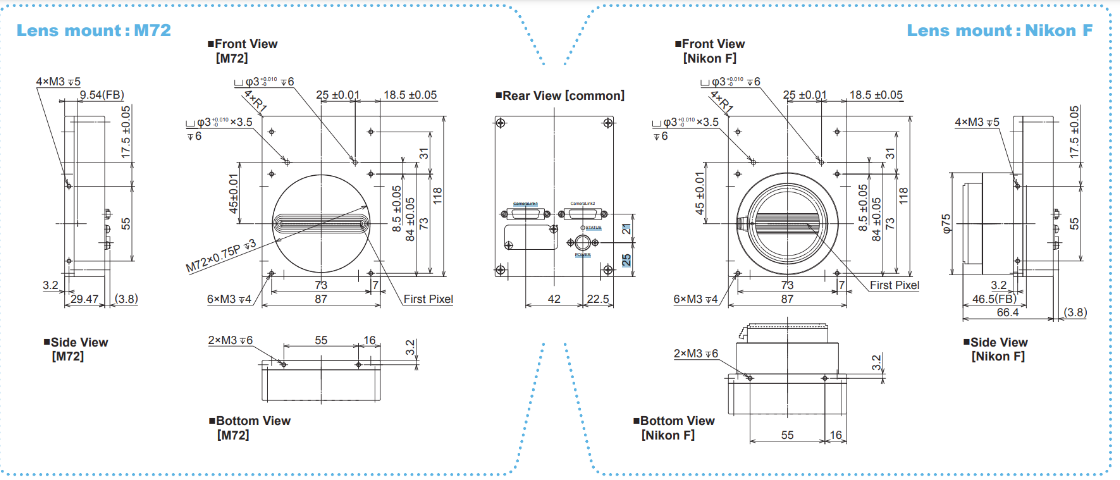

Dimensions

FC series
View large image

Product Comparison

※You can flick left and right to view.
  FCH800A/400A FXS800A/400A SFB400H
Sensor CMOS CMOS CMOS
Resolution 8192/4096 8192/4096 4096
Pixel Size 7×7μm 7×7μm 7×7μm
Line Rate 72.4kHz 72.4kHz 34kHz
Interface Camera Link CXP Camera Link
Lends Mount M72/F M72/F M42/F

FAQ

Q

Is the 16k pixel camera single line?

A

Yes, the 16k pixel camera has a single line sensor. The 8k pixel and 4k pixel cameras are also single line.

Q

What is the transmission distance by Camera Link at 80/85 MHz?

A

It is about 5m for 80MHz transmission and less for 85MHz, but it depends on the cable performance. Please evaluate the transmission distance with actual equipment.
