CM Series CMB200H/100H
CM Series's Functions & Features
- High-sensitivity CCD sensor with pixel size of 14 x 14μm
- Tuning for high image quality
- Synchronization mode setting (internal/external)
- Exposure control function
- Horizontal binning function
- Lightweight and compact
- CMB100P has a wide selection of lenses with C-mount
Performance Specifications
※You can flick left and right to view.
| Physical Specifications | Unit | CMB200HｰCF | CMB100H-CC |
|---|---|---|---|
| Resolution | pixel | 2048 | 1024 |
| Pixel size | μm | 14×14 | |
| Aperture | mm | 28.67 | 14.34 |
| Lens Mount | - | Nikon F | C |
| Flange back | mm | 46.5 | 17.526 |
| Power Input Connector | - | 6Pin：HR10-7R-6P（HIROSE） | |
| Size(W×H×D) | mm | 56 × 50 × 126.75 | 56 × 50 × 97.78 |
| Weight（Excluding Lens） | g | 380 | 310 |
| Data Output Format | - | Camera Link-Base | |
| Data Output Connector | - | Camera Link 26Pin (MDR) 10226-2200PE(3M) | |
| Operation Range | Unit | CMB200HｰCF | CMB100H-CC |
| Exposure Control | - | Yes | |
| Data Rate | MHz | 40 (20) | |
| Line Rate | kHz | Max: 18.6 | Max: 35.7 |
| Gain Range | dB | Min: 0 Max: 35 | |
| Data Format | bit | 8/10/12 | |
| Operating Temperature | ℃ | Min: 0 Max: 50 | |
| Power Supply | DC V | Min: 11 Max: 16 (Typ.12～15V) | |
(*1) This information is subject to change without notice.
(*2) Measuring environment of vibration test 【Excitation acceleration : 9.8m/s2, Excitation frequency : 5Hz - 200Hz, Test time : 120 min. each in X, Y, Z direction】

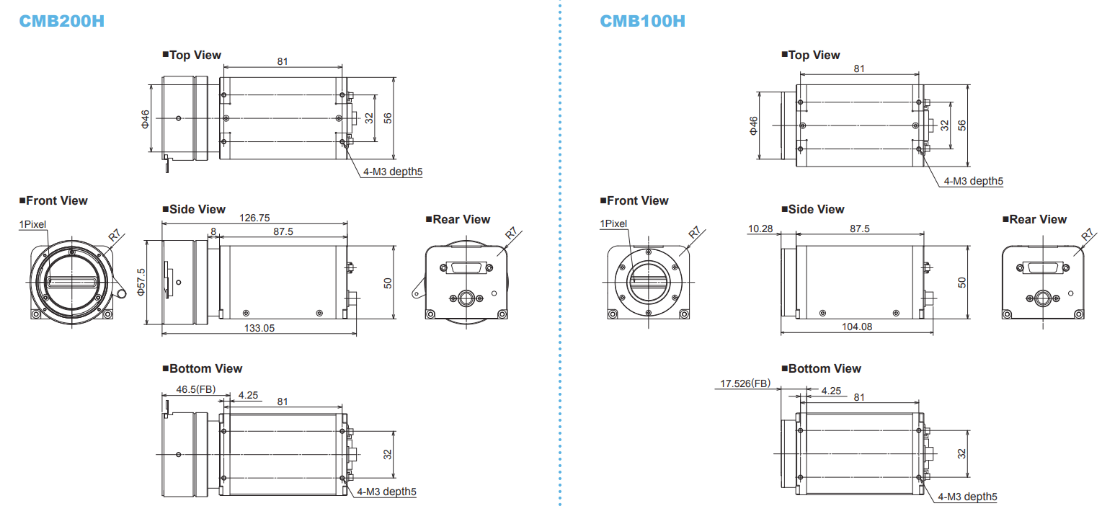

Dimensions
Product Comparison
※You can flick left and right to view.
| CMB200H | CMB100H | HOB200H | |
|---|---|---|---|
| Sensor | CCD | CCD | CCD |
| Resolution | 2048 | 1024 | 2048 |
| Pixel Size | 14×14μm | 14×14μm | 10×180μm |
| Line Rate | 18.6kHz | 35.7kHz | 70kHz |
| Interface | Camera Link | Camera Link | Camera Link |
| Lends Mount | Nikon F | C | M42/Nikon F |
FAQ
Q
Is it possible to attach a C-mount lens to a 2k resolutions?
A
It is possible to attach onto 2k camera, but it will cause vignetting at both ends of the image. Please consult with our sales representatives for further information.
Q
It looks like only C-Mount is available for 1k resoulutions. Would it be possible to change it to F-Mount?
A
Yes, it is possible though it is treated as a special order, please contact our sales representatives for further information.
Q
Is it possible to shorten the depth and length of the housing?
A
We may be able to do so through semi-custom development. Please consult with our sales representatives for more information.
