HO Series HOB200H
HO Series's Functions & Features
- Ultra high-sensitivity CCD sensor with pixel size of 10 x 180µm
- Data rate of 160 MHz
- Camera link connector is SDR (mini)
- Synchronous mode setting (internal/external)
- Lightweight and compact
- Single power supply operation (11 to 25V)
- Horizontal binning function
Performance Specifications
※You can flick left and right to view.
| Physical Specifications | Unit | HOB200H-CN | HOB200H-C4 |
|---|---|---|---|
| Resolution | pixel | 2048 | |
| Pixel size | μm | 10×180 | |
| Aperture | mm | 20.48 | |
| Lens Mount | - | No mount | M42 |
| Flange back | mm | 10.35 | 12 |
| Power Input Connector | - | 6Pin：HR10A-7R-6PB（HIROSE） | |
| Size(W×H×D) | mm | 60×60×41.8 | |
| Weight（Excluding Lens） | g | 230 | |
| Data Output Format | - | Camera Link-Base | |
| Data Output Connector | - | SDR 26Pin HDR-EC26FYTG2 (HONDA TSUSHIN KOGYO) | |
| Operation Range | Unit | HOB200H-CN | HOB200H-C4 |
| Exposure Control | - | None | |
| Data Rate | MHz | 160 | |
| Line Rate | kHz | Max: 70（14.28μs) | |
| Gain Range | dB | Min: 0 Max: 12.04 | |
| Data Format | bit | 8/10/12 | |
| Operating Temperature | ℃ | Min: 0 Max:45 | |
| Power Supply | DC V | Min: 11 Max:25 (Typ.12～24V) | |
(*1) This information is subject to change without notice.
(*2) Measuring environment of vibration test 【Excitation acceleration : 9.8m/s2, Excitation frequency : 5Hz - 200Hz, Test time : 120 min. each in X, Y, Z direction】

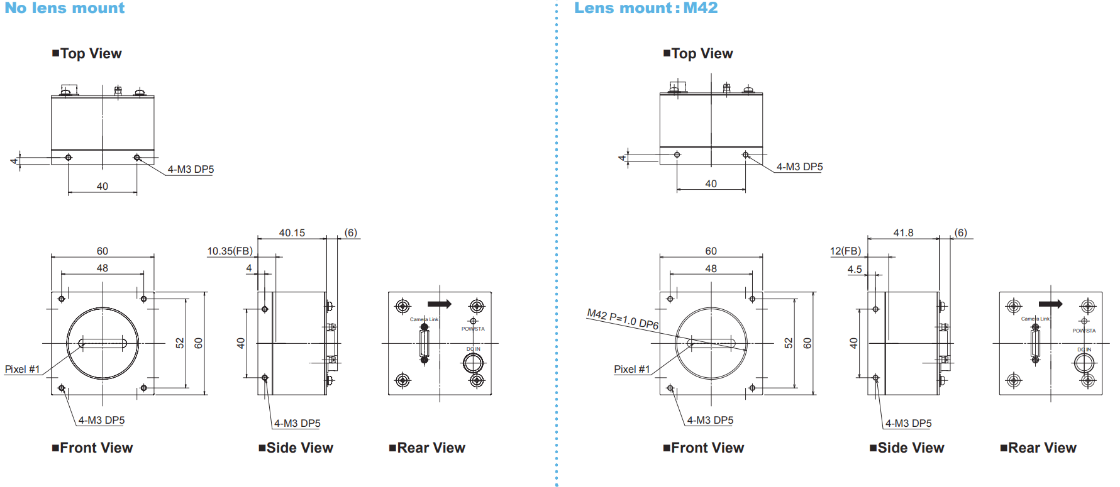

Dimensions
Product Comparison
※You can flick left and right to view.
| HOB200H | CMB200H | CMB100H | |
|---|---|---|---|
| Sensor | CCD | CCD | CCD |
| Resolution | 2048 | 2048 | 1024 |
| Pixel Size | 10×180μm | 14×14μm | 14×14μm |
| Line Rate | 70kHz | 18.6kHz | 35.7kHz |
| Interface | Camera Link | Camera Link | Camera Link |
| Lends Mount | マウント無/ M42 | Nikon F | C |
FAQ
Q
What are the advantages of the rectangular pixel and how do they affect the image quality?
A
It enables capturing ultra-high-sensitive images. The image in the flow direction will be coarse due to the rectangular pixels of the sensor.
Q
What would be the main use of the line scan camera with rectangular pixels?
A
Because of their high sensitivity, they are used for width measurement, white line detection on AGVs, and measurement under low light conditions.
